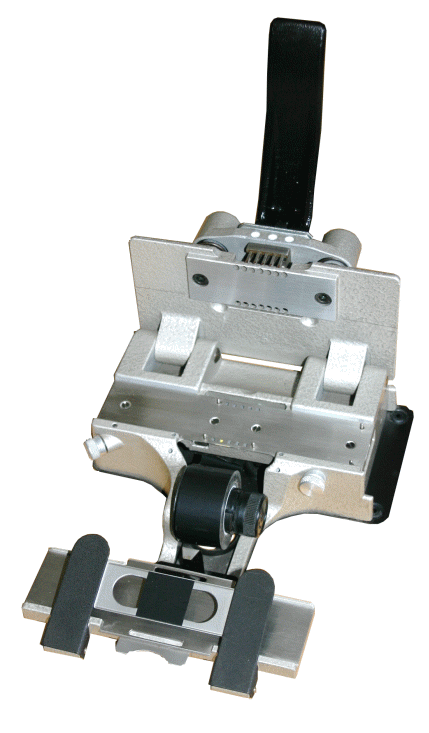

Splicer for Archive/Video-Transfert

M.3-35mm Pos/2Frames Special (INC44/b)

Perforates and cuts a special 38mm wide adhesive tape which covers exactly 2 frames of 35 mm film with positive perforation.

  • Micrometrical registration pins regulator to obtain always perfect butt splices also with old and retired film.
  • Spring-loaded knife, always ready for the next cut.
  • Anti-skid plate with rubber foot mounting to keep the splicer stationary and to collect the punched-out tape rectangles.

For a better result in time we recommend to use a proper splicing tape like our CIR (NAS9B 38mmx10mt Tape Clear Edit).

M.3-16mm Special (INC47/B-SCM)

Perforates and cuts the adhesive tape to join 16 mm film.

  • Micrometrical registration pins regulator to obtain always perfect butt splices also with old and retired film.
  • Retractable pins for splicing of non-standard pitched film.
  • Film-hold-down-springs for curled film.
  • Guide lines for tape application.
  • Spring-loaded knife, always ready for the next cut.
  • Anti-skid plate with rubber foot mounting to keep the splicer stationary and to collect the punched-out tape rectangles.

For a better result in time we recommend to use a proper splicing tape like our CIR (NAS2 15mmx10mt Tape Clear Edit)

INC56-M4.35mmArchive

M4-35mm Archiver (INC56)

Especially designed for splice-reinforcements and short perforation repairs on old 35mm archive film (negative/positive).

  • Re-make dried-out, damaged or half detached splices due to ageing, which would not pass through re-printing or telecine.
  • To reinforce or repair damaged perforations due to ageing, which could not be repaired with the normal pre perforated adhesive tape without alterning the film pitch.
  • Always performing perfectly butt well-aligned splices, even when film is remarkably shrunk.

For better results in time we recommend to use a proper splicing tape like our:

  • NAS12A SPC 25mmx20mt Tape Black/Pre
    Thin and black for a light reinforcement and simplified detection of the repaired section.
  • NAS9B 38mmx10mt Tape Clear Edit
    Thick and transparent for an invisible and strong reinforcement/repairing.

A sample of splice reinforcement and perforation repair.

M.3-35mm Neg./2FramesSpecial (INC44/a)

Perforates and cuts a special 38mm wide adhesive tape which covers exactly 2 frames of 35 mm film with negative perforation.

  • Micrometrical registration pins regulator to obtain always perfect butt splices also with old and retired film.
  • Spring-loaded knife, always ready for the next cut.
  • Anti-skid plate with rubber foot mounting to keep the splicer stationary and to collect the punched-out tape rectangles.

For a better result in time we recommend to use a proper splicing tape like our CIR (NAS9B 38mmx10mt Tape Clear Edit).

INC5 16mm metal Amateur

16mm metal (INC5)

Perforates and cuts the adhesive tape to join 16mm film in one single action.

  • Metal casting with cutting parts in stainless anti-magnetic steel.
  • Possibility to splice old and retired film.
  • Particularly indicated for film archives to reinforce or remake splices on old film without losing a single frame.

For a better result in time, we recommend using a proper splicing tape like our CIR (NAS2 15mmx10mt Tape Clear Edit)

9,5mm Pathè (INC2)

Perforates and cuts the adhesive tape to join 9,5 Pathe’ film in one single action with a wraparound splice.

  • Metal casting with cutting parts in stainless anti-magnetic steel.
  • Possibility to splice old and retired film.
  • Particularly indicated for film archives to reinforce or remake splices on old film without losing a single frame.

For a better result in time, we recommend using a proper splicing tape like our CIR (NAS11 14mmx10mt Tape Clear Edit)

8mm (INC1)

Perforates and cuts the adhesive tape to join 8mm film in one single action with a wraparound splice, leaving the soundtrack free.

  • Metal casting with cutting parts in stainless anti-magnetic steel.
  • Possibility to splice old and retired film.
  • Particularly indicated for film archives to reinforce or remake splices on old film without losing a single frame.

For a better result in time, we recommend to use a proper splicing tape like our CIR (NAS13 12mmx10mt Tape Clear Edit)

Super 8 (INC3)

Perforates and cuts the adhesive tape to join super 8mm film in one single action with a wraparound splice.

  • Plastic base with cutting parts in stainless anti-magnetic steel.
  • Possibility to splice old and retired film.
  • Particularly indicated for film archives to reinforce or remake splices on old film without losing a single frame.

For a better result in time, we recommend using a proper splicing tape like our CIR (NAS10 8,5mmx10mt Tape Clear Edit)

Super 8 Metal (INC6)

Perforates and cuts the adhesive tape to join super 8mm film in one single action with a wraparound splice.

  • Metal casting with cutting parts in stainless anti-magnetic steel.
  • Possibility to splice old and retired film.
  • Particularly indicated for film archives to reinforce or remake splices on old film without losing a single frame.

For a better result in time, we recommend using a proper splicing tape like our CIR (NAS10 8,5mmx10mt Tape Clear Edit)

MAC2 35mm Cement Splicer (Cat. CINE1)

MAC2 35mm Splicer is specially designed for splicing all types of 35mm film and repairing any splice, even on very old library shots. It resolves the film pitch and/or width variation problems also arising with aging acetate or nitrate film. Thanks to a series of well-engineered matrix regulations it works perfectly with in-pitch and well-aligned splices and also enables you to renew defective splices before printing, thus eliminating possible transport problems. The electronic spiral miller accurately scrapes the film emulsion and simultaneously vacuums the entire resulting residue eliminating any ”rain” effect on the film.

  • Warning monitor LED: new red led on the pressure plate to allow a quick check of the hot press in temperature condition
  • Hardened hot press and film support bar
  • Self-leveling press for better and stronger splices
  • A simple mechanism for easy tuning of the miller thickness action

Available (on request) for 16mm, 9,5/8/Super8

MAC2 16mm (Cat. Cine1-A)

MAC2 9,5 Pathé/Regular8/Super8 (Cat. Cine1-B)
ONLY ON REQUEST – NOT USUALLY IN STOCK

Promo Clip

video
play-rounded-fill

(splicing procedure demo)
MAC2 35mm
