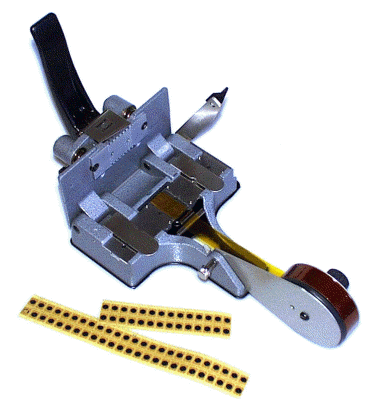

M.3 Super35 Smart Card Film Splicer

Adhesive Tape Film Splicer specially designed to cut and join together Polyester or Epoxy films normally used by industries manufacturing smart-cards and other electronic components.

• Perfectly butt and in line-splice
• Self-perforating adhesive tape
• Adjustable film cutter 3 inch core tape dispenser
• Strong & reliable construction (aluminium casting/inox steel)

This splicer ensures an easy and safe film-transport during all processing phases.

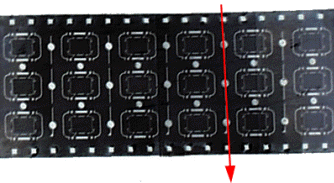

M3 Super 35mm Standard calibration

Cut line between the perforation

M3 Super 35mm Special Calibration
#HalfPerf (on request)

Cut line in the middle of the perforations

M.3-35mm Microfilm (INC23)
M.3-16mm Microfilm (INC22)

Cuts the adhesive tape in performance with film width to join 35mm (16mm on INC22) microfilms.

It comes equipped with:

• Hold down clamps to keep fixed film terminals during tape application.
• Side film cutter knife.
• Side disks for a central guide of the adhesive tape.
• Non perforated transparent adhesive tape (9mm*10metres special “for CIR Splicers”) with non bleeding adhesive on extremely resistant backing.
