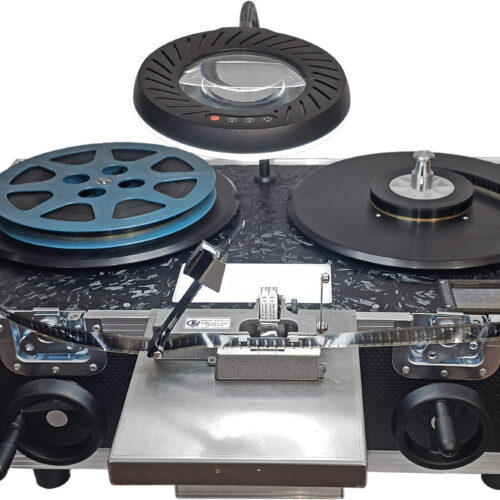

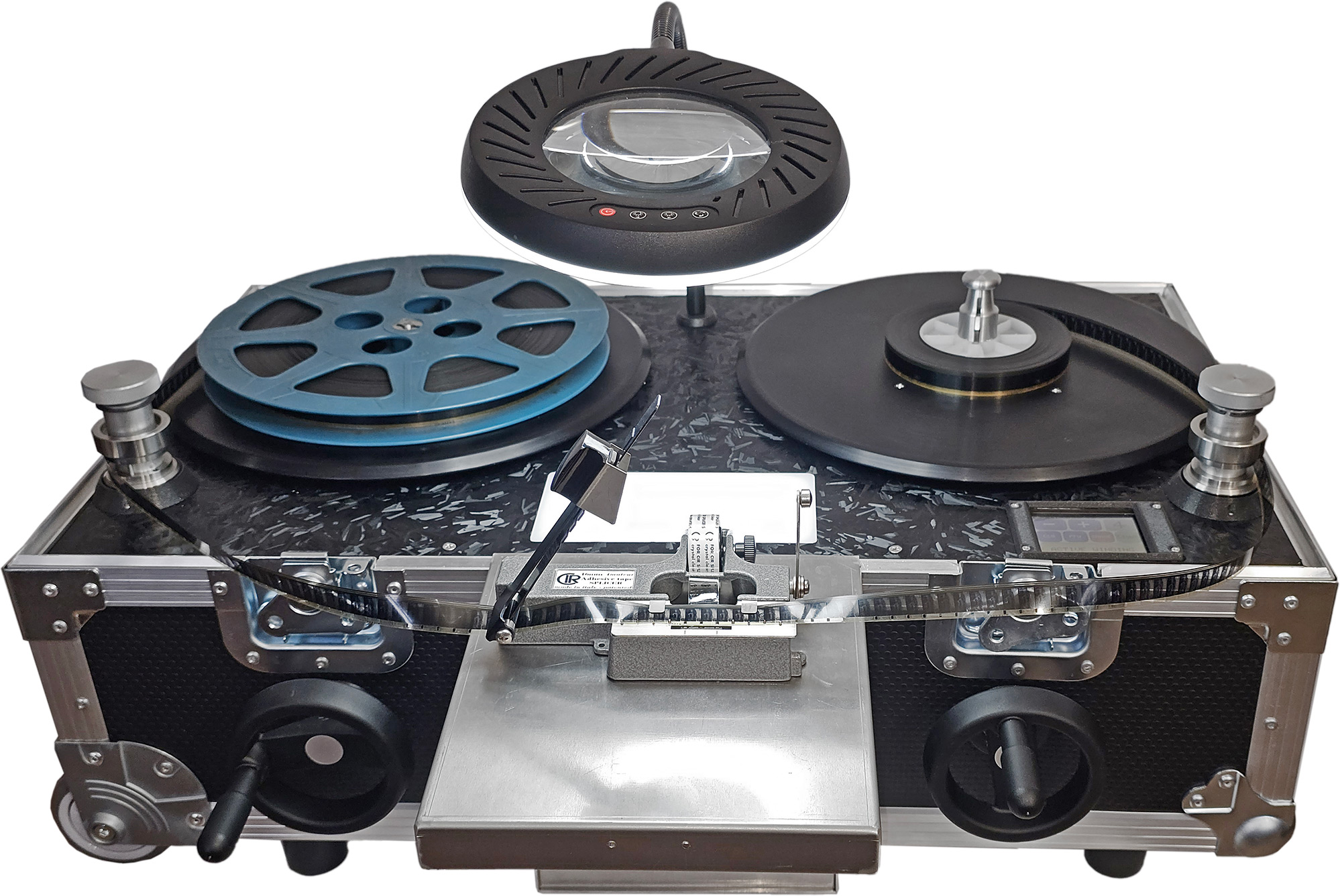

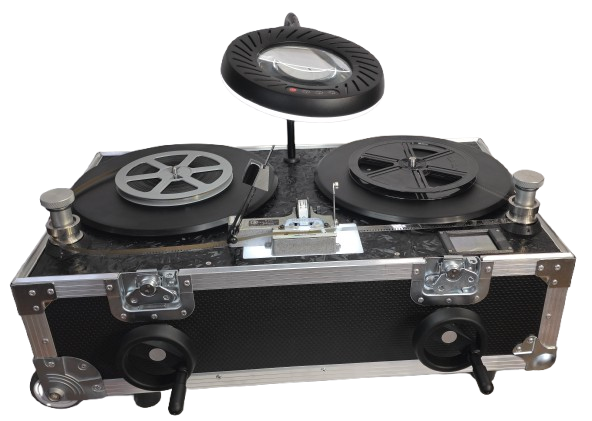

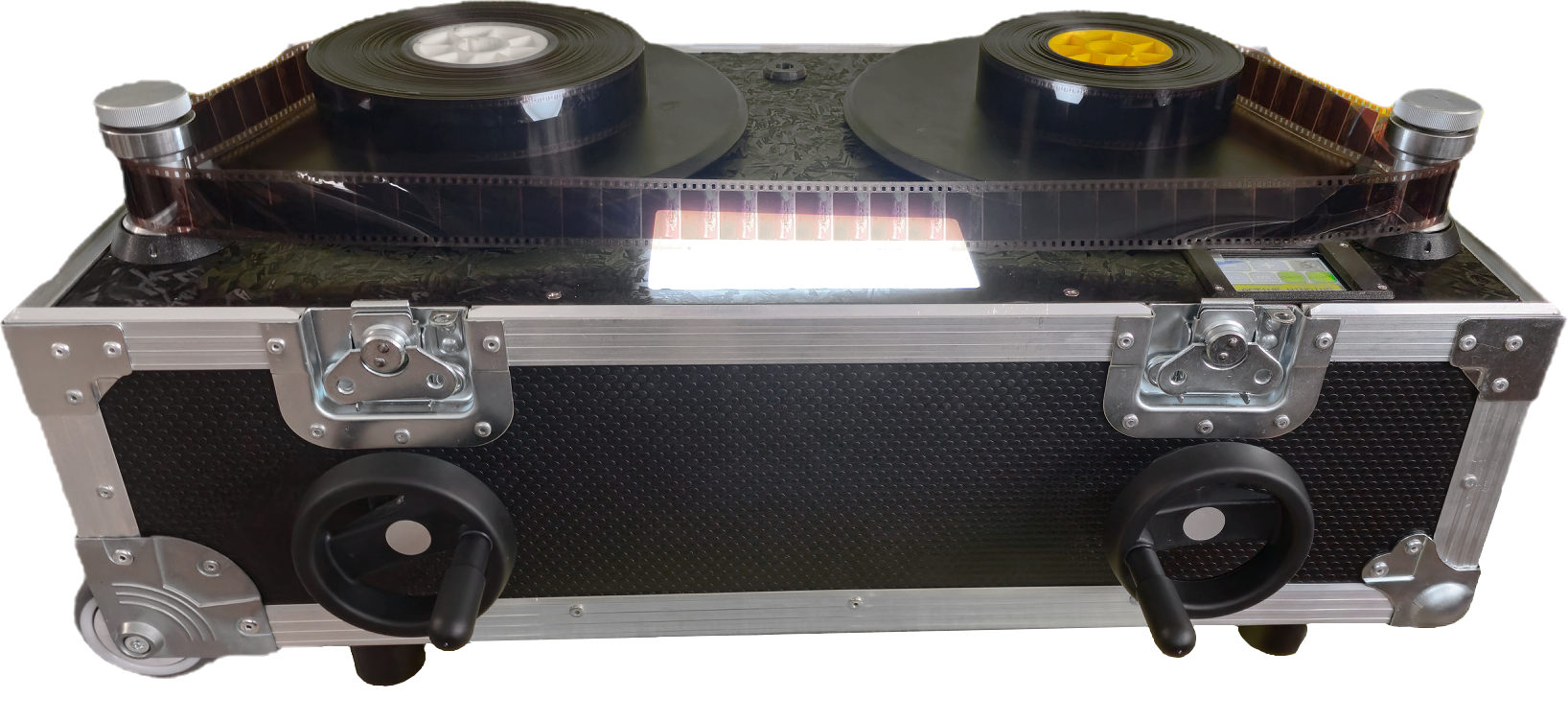

B.I.A.N. Front view
B.I.A.N. AI Generated 3D model

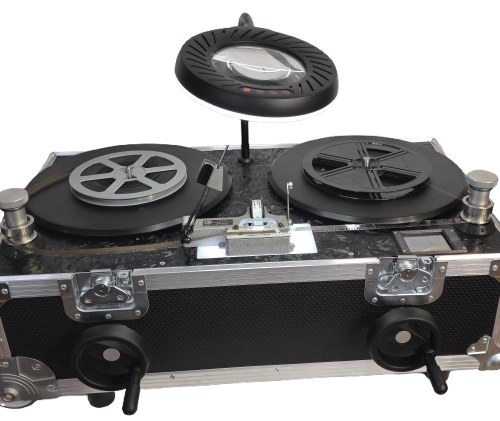

B.I.A.N. (manual)

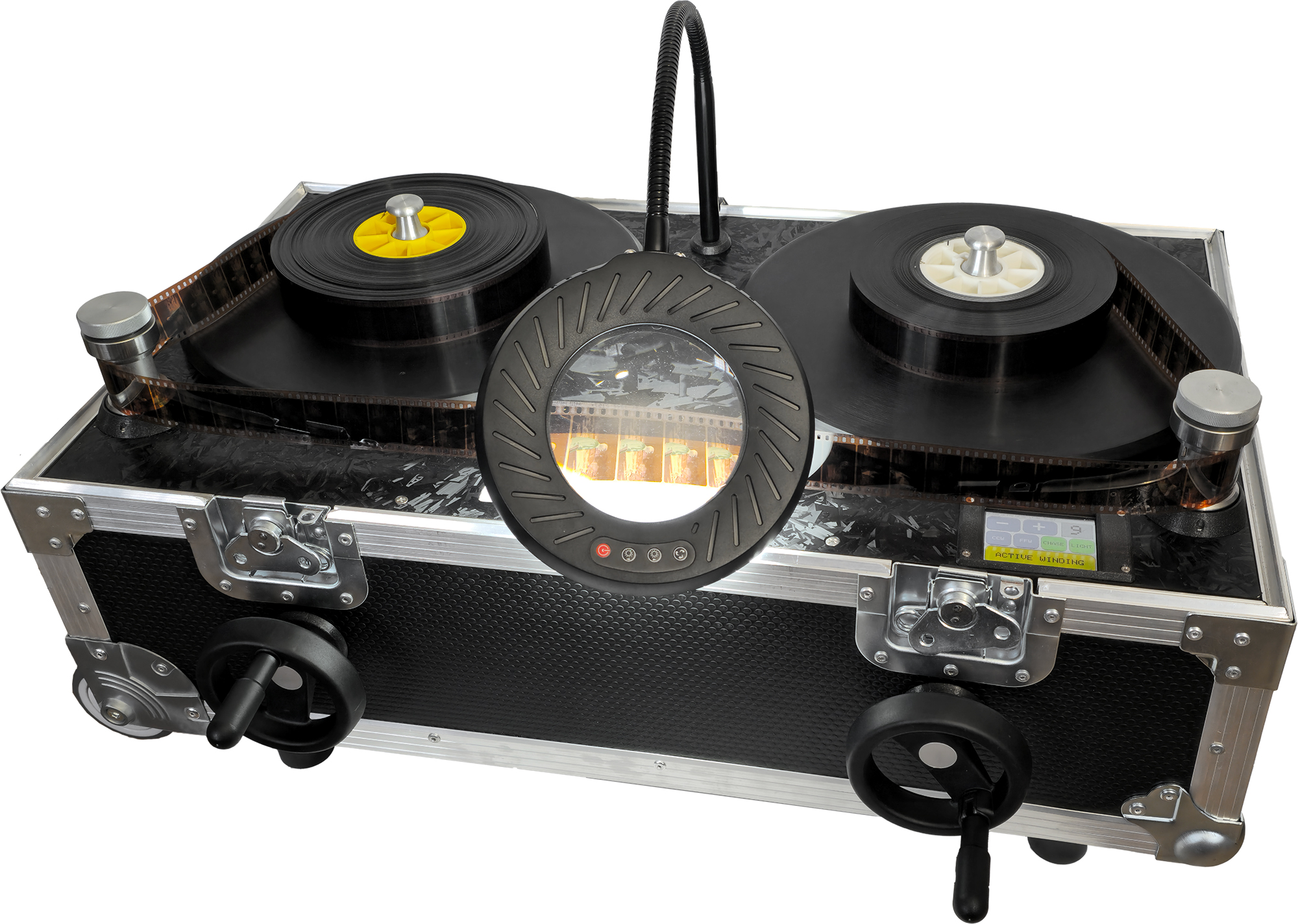

B.I.A.N. Active (motorized)
In cellars, storage rooms, and many closets around the world, thousands of hours of amateur and professional footage are preserved today — in varying states of condition, often unknown even to the owner.
Geographical, geopolitical, and economic limitations are often the reason why the contents of these archives are not brought to light and valued for what they can represent.
BIAN is proposed as a new tool offered to allow the inspection and repair of films in various formats (from 8mm to 35mm) at the storage site.

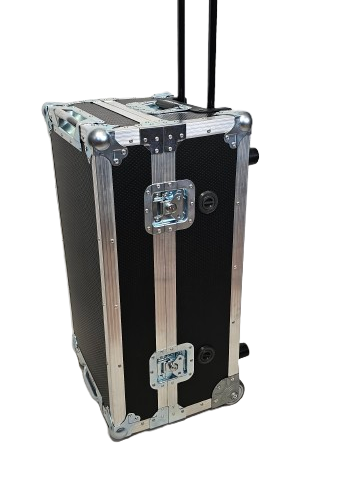

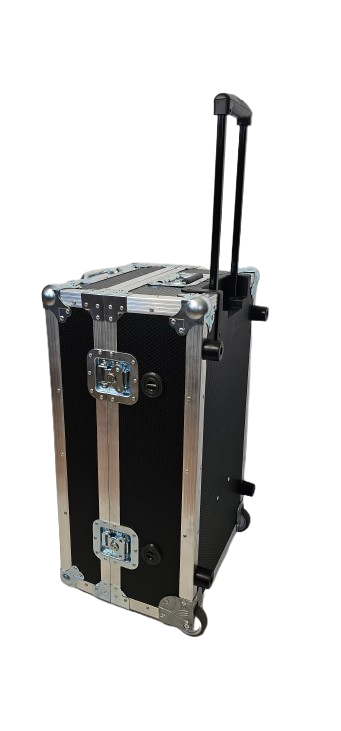

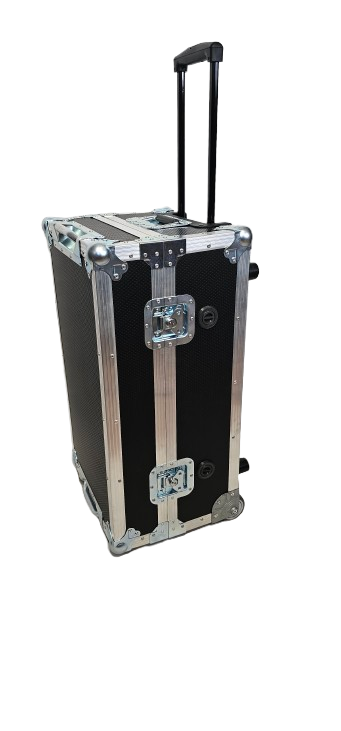

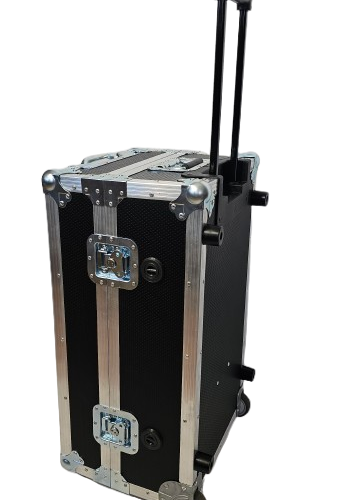

BIAN is a simple, modular device. It resembles a suitcase, and inside it holds all the components and tools needed to carry out both tactile and visual inspection — assessing the physical condition as well as the content of the films under evaluation.

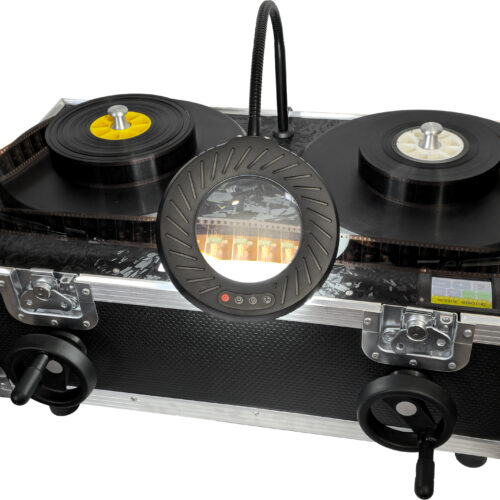

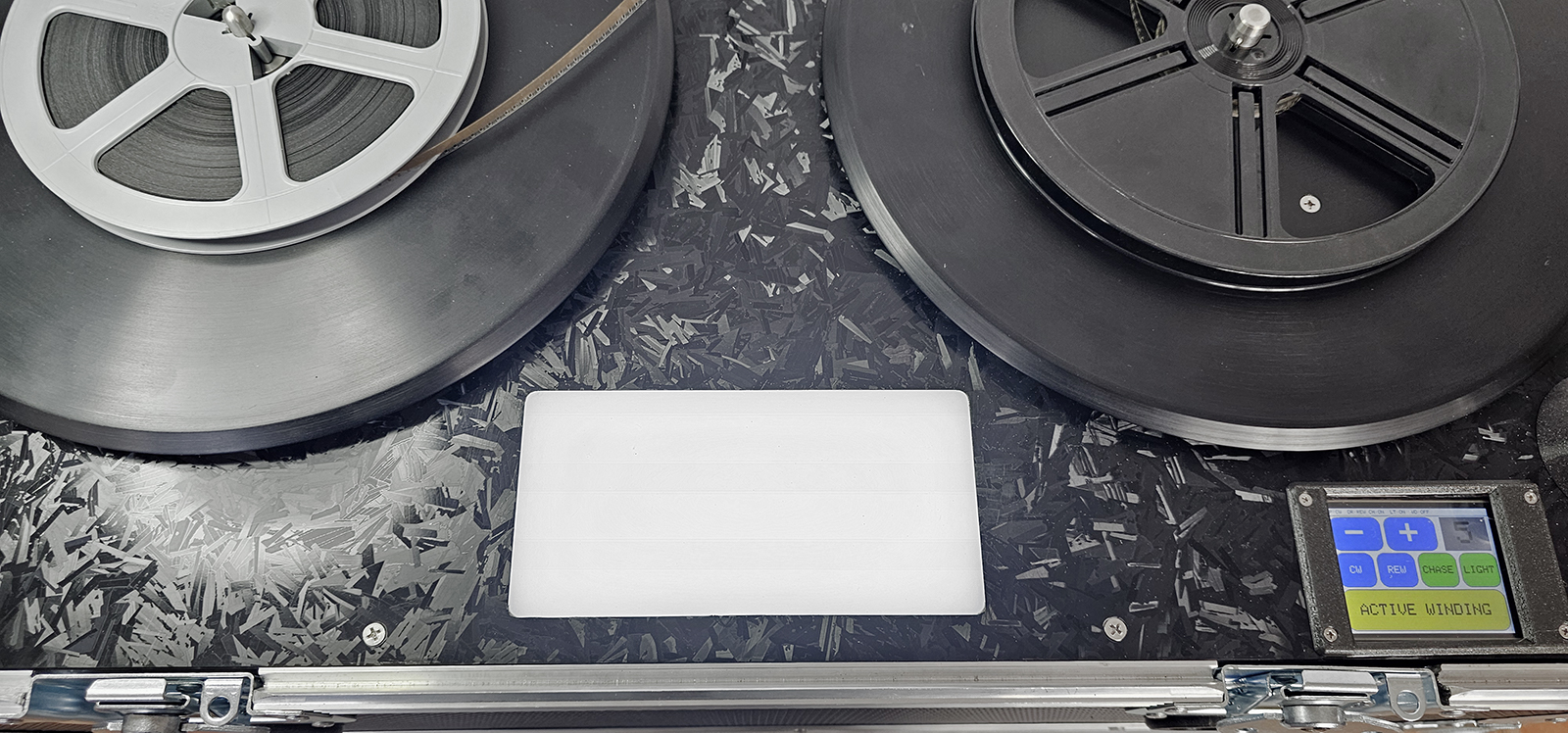

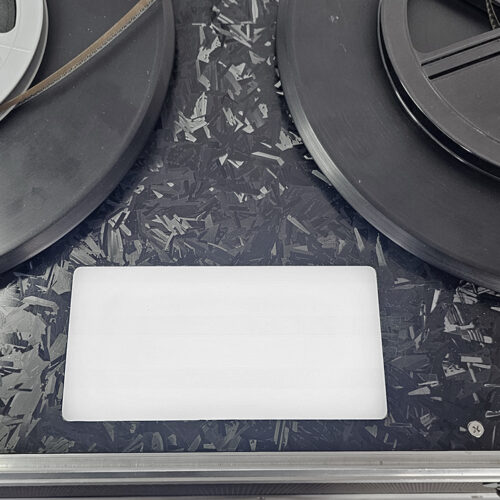

It comes equipped with an illuminating surface for viewing the contents. It can be equipped with a reflective lighting system with a magnifying lens for more accurate visual analysis of the film’s state of preservation.

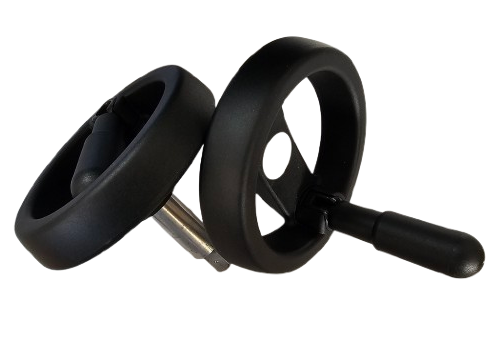

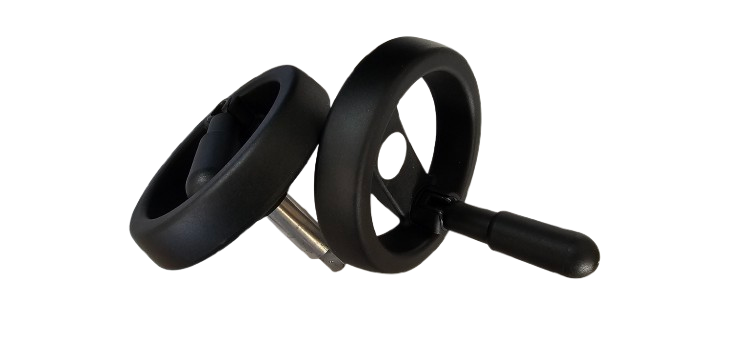

The basic version of BIAN features two spoked handwheels with a foldable handle, designed for maximum simplicity of purely manual movement control. It operates in both directions and supports horizontal film travel, whether the film is on a core, a reel, or neither.
The extended version of BIAN integrates manual control with electronic control of a set of motors with adjustable assistance for winding/unwinding movement.
BIAN can be powered by the mains but also by a power bank, providing greater operational independence when no power supply is available.
With BIAN, it will be possible to rediscover memories and contents otherwise destined for oblivion.
CONFIGURATIONS, ACCESSORIES AND SPECIFICATIONS
Versions: Manual – ACTIVE (Manual/Motorized)

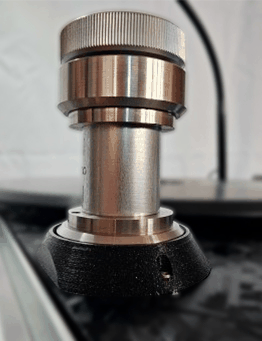

Standard Equipment: Pair of spoked handwheels with folding handle, leveling plates 450mt., shafts with pins for 16/35 cores. Diffused light source on the work surface. AC power supply.

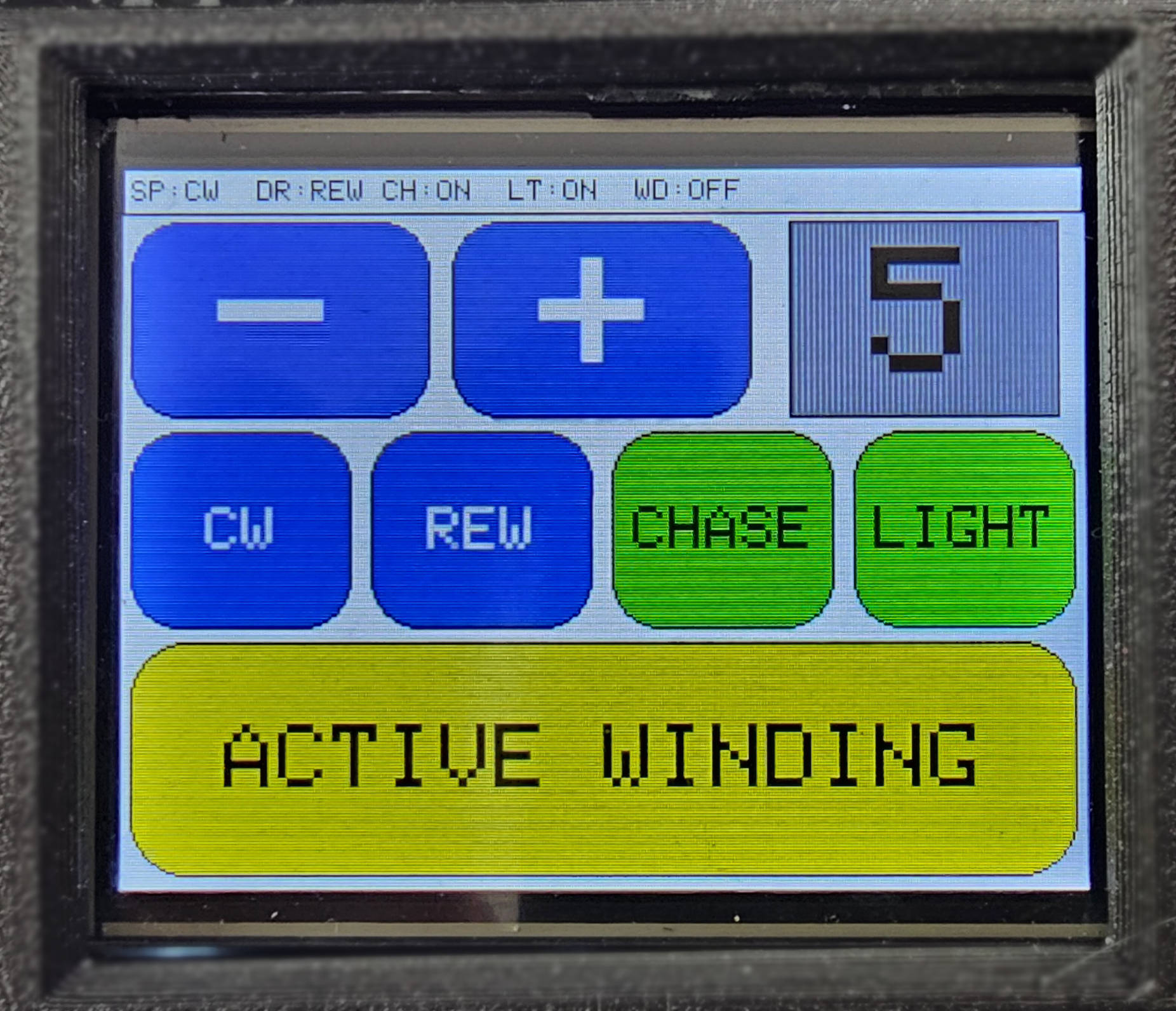

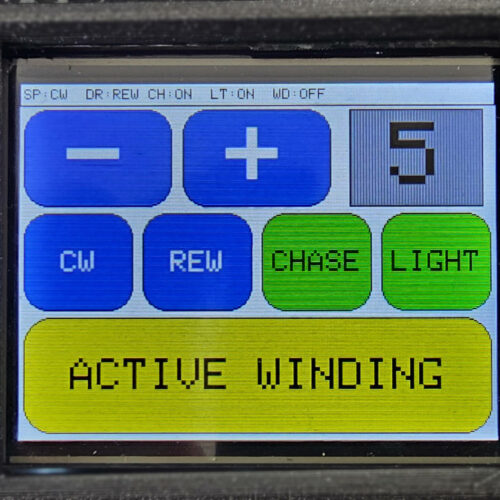

Motorized Version: Control logic for modulation, traction direction, and rotation of the motor assembly to assist the film winding motion.

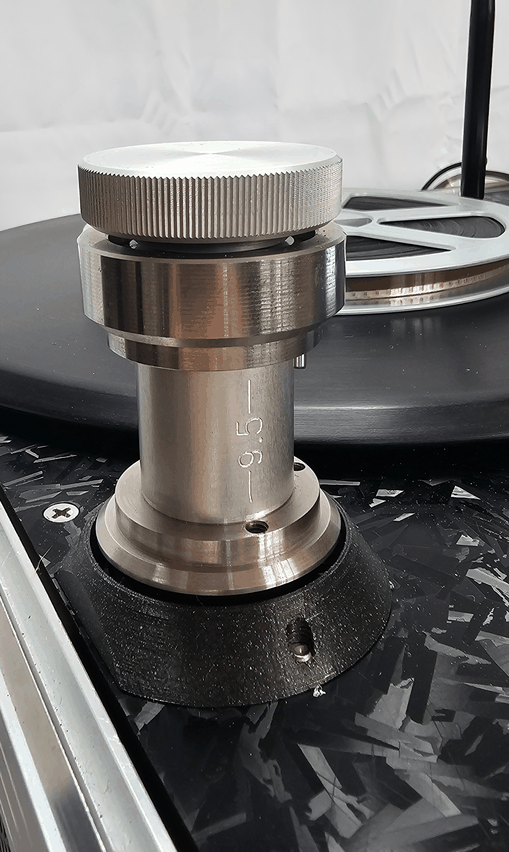

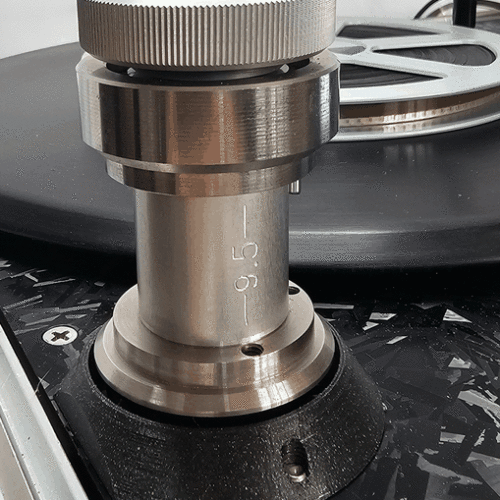

Accessories: adapters for reels 16mm, 9.5mm, 8mm, Super8. LED lamp with lens. Rechargeable battery pack. Removable work surface.
DIMENSIONS: 74x43x35(closed) centimeters
WEIGHT: 20.5 kg (manual) / 22 kg (motorized)
CONFIGURAZIONI, ACCESSORI E SPECIFICHE
Versioni: Manuale – ACTIVE (Manuale/Motorizzato)
Corredo standard: coppia di volantini a razze con impugnatura ribaltabile, piatti di livellamento 450mt., assi con spina per nuclei 16/35. Sorgente di luce diffusa sul piano. Alimentatore CA.
Versione motorizzata: logica di controllo della modulazione, direzione di trazione e rotazione del gruppo motori a supporto del movimento di avvolgimento della pellicola.
Accessori: adattatori per bobine 16mm, 9,5mm, 8mm, Super8. Lampada a LED con lente. Pacco batteria ricaricabile. Piano di lavoro rimovibile.
DIMENSIONI: 74X43X35(chiuso) centimetri
PESO: 20.5 Kg.(manuale)/22 Kg.(motorizzato)
PRICELIST
B.I.A.N. (16/35 manual) — € 3,500.00
B.I.A.N. ACTIVE (16/35 manual/motorized) — € 4,500.00
ACCESSORIES

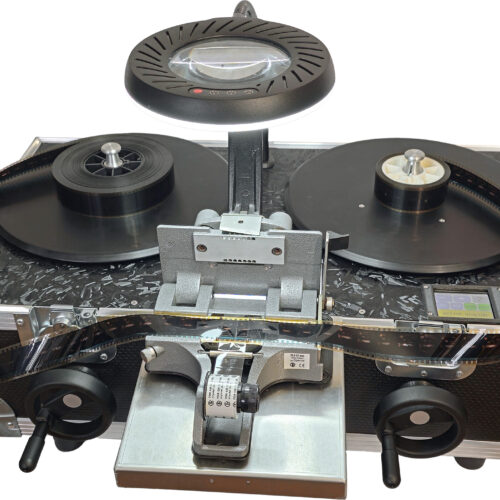

- Removable Deck (small work surface) — € 300.00
- 16mm reels shaft twin set — € 200.00
- 8mm reels shaft twin set — € 200.00
- Super 8 reels shaft twin set — € 200.00
- 9.5mm Pathé reels shafts twin set — € 250.00

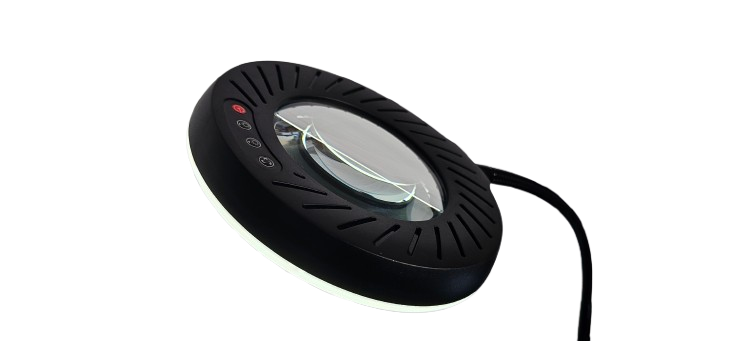

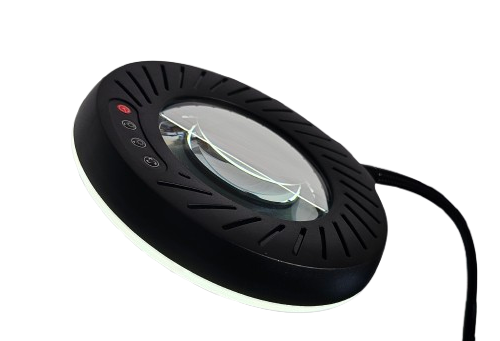

- Led lamp with adjustable arm & magnifying lens — € 250.00
- Rechargeable Battery Pack — € 200.00
All prices are EXW conditions
LISTINO PREZZI
B.I.A.N. (16/35 manuale) — € 3.500,00
B.I.A.N. ACTIVE (16/35 manuale/motorizzato) — € 4.500,00
ACCESSORI
- Piano Rimovibile (piccolo piano di lavoro) — € 300,00
- Coppia di assi per bobine 16mm — € 200,00
- Coppia di assi per bobine 8mm — € 200,00
- Coppia di assi per bobine Super 8 — € 200,00
- Coppia di assi per bobine Pathé 9,5mm — € 250,00
- Lampada Led con braccio regolabile e lente d’ingrandimento — € 250,00
- Batteria Ricaricabile — € 200,00
